Beverage Bottling Factory Layout Checklist
A factory layout checklist for beverage bottling lines, covering process flow, utilities, conveyors, packing area, warehouse and installation planning.
A good layout saves money after installation
Factory layout affects installation speed, operator movement, maintenance access, product flow and future expansion. Before buying a beverage bottling line, the buyer should prepare a simple floor plan with room dimensions, entrance size, ceiling height, drain locations, power points and warehouse area.
Plan the process flow from raw material to finished packs
A beverage factory usually moves from raw material or water treatment to processing, bottle blowing or bottle supply, filling, labeling, coding, packing, palletizing and finished goods storage. If the route crosses itself too many times, operators lose time and the factory becomes harder to keep clean.

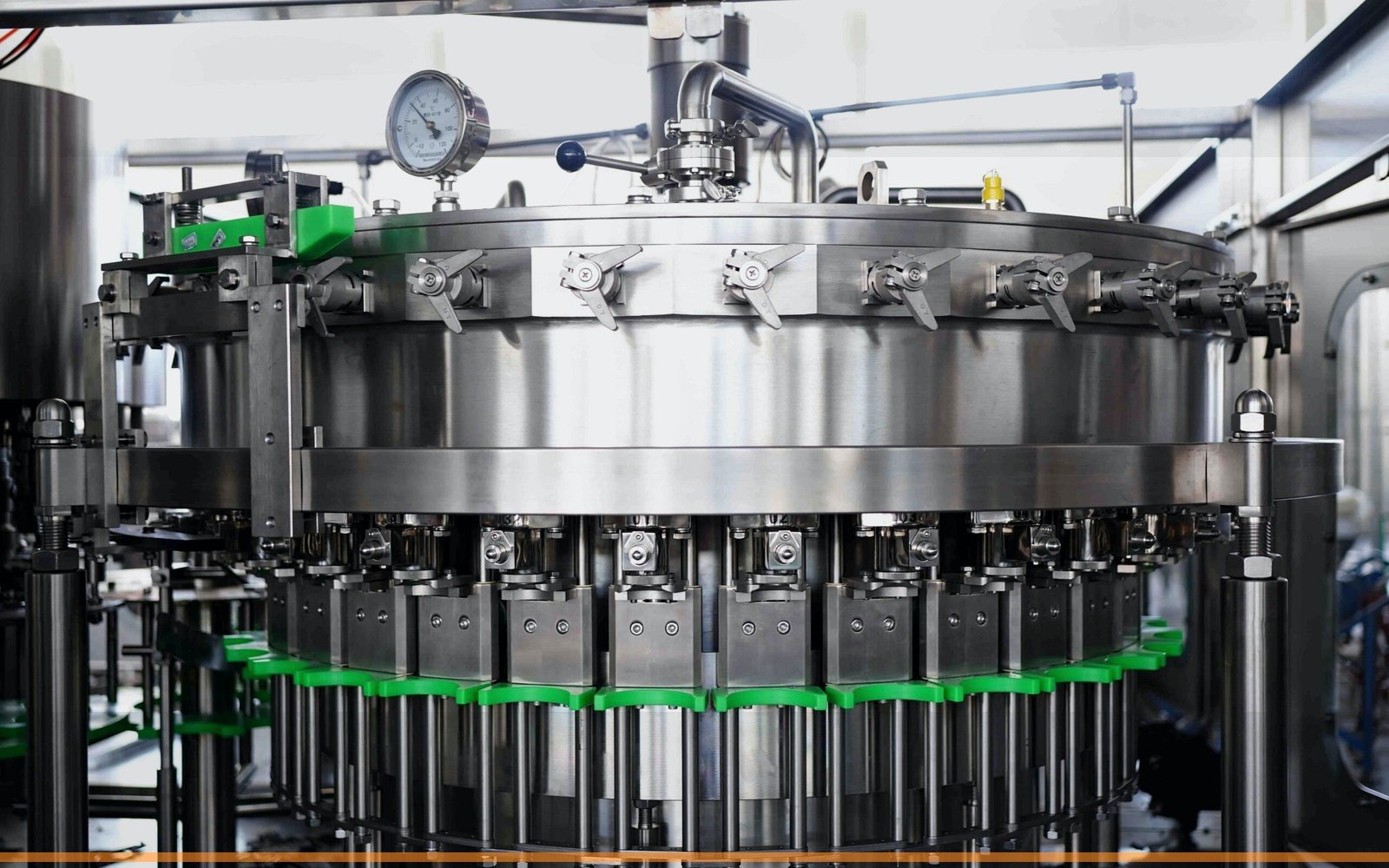

Utilities and maintenance space
Machines need power, water, compressed air, steam or heat source, drainage and sometimes chilled water. Maintenance space around the filling machine, labeler, packing machine and control cabinets should not be ignored. Many layout problems happen because the machine can fit on paper but cannot be serviced properly.
How Allot Tech uses layout information
Allot Tech uses layout information to check whether the proposed line is practical for the buyer. We can discuss machine sequence, conveyor direction, operator position, packing area and export shipment planning before the buyer commits to equipment.
Buyer checklist before requesting a quotation
- Factory length, width and height
- Door and container unloading access
- Water, power and air supply
- Drainage and clean zones
- Packing and warehouse area
- Future expansion route
Continue planning your beverage machinery project
Use these internal pages to compare equipment scope, line configuration and export support before requesting a final quotation.
Common Questions About beverage bottling factory layout
When should factory layout be discussed?
Layout should be discussed before confirming the final machine list, because conveyor length, machine direction and packing area affect the quotation.
Can Allot Tech help review a simple factory drawing?
Yes. A hand sketch with dimensions is already useful for early discussion.
Why leave extra maintenance space?
Operators need access for cleaning, inspection, spare parts replacement and safe operation. A cramped layout can slow production.
Need a practical quotation from China?
Allot Technology (Suzhou) Co., Ltd. can help match process, filling, labeling, packing and export support for your beverage project.
Contact Allot TechPut every connection and maintenance route on the layout
A layout should show more than machine rectangles. It should connect raw materials, treatment, filling, packing, people, waste and finished goods while reserving safe access for cleaning, change parts, maintenance and future capacity.
| Utility or space | Information to confirm | Layout consequence |
|---|---|---|
| Electrical | Voltage, frequency, phase, connected load, panels and isolation | Cable routes, panel access and distribution capacity |
| Compressed air | Pressure, normal and peak flow, quality and receiver location | Pipe size, dryer or filtration and pressure-drop control |
| Process and cleaning water | Quality, pressure, flow, temperature and storage | Tanks, pumps, hygienic piping and cleaning stations |
| Drainage | Expected flow, chemistry, floor slope and treatment | Drain positions, safe cleaning and wastewater route |
| Cooling or heat | Chilled water, cooling water, steam or thermal demand where applicable | Utility room, insulated routes and service access |
| Material flow | Preforms or bottles, caps, labels, film, cartons and pallets | Storage, staging, forklift routes and finished-goods exit |
Draw access envelopes
- Guard and cabinet door opening
- Filler bowl, mold or change-part removal
- Operator standing and replenishment points
- Maintenance lifting and spare-parts routes
- Emergency exits and safe crossing points
- Space for a future machine or conveyor extension
Issue one coordinated drawing
Use supplier general-arrangement drawings and one site master plan. Mark utility connection points, elevations, conveyor direction, column positions and approval revision so civil, electrical and mechanical teams work from the same basis.
Buyer questions
What utilities should appear on a bottling-line layout?
Show electrical supply, clean and instrument air where needed, process and cleaning water, drainage, cooling or chilled water, steam or heat when applicable, ventilation and utility connection points.
How much maintenance space should be left around machines?
There is no universal distance. Use supplier access drawings and allow room for doors, guards, mold or change-part removal, platforms, lifting, cleaning, spare-parts movement and safe operator routes.
